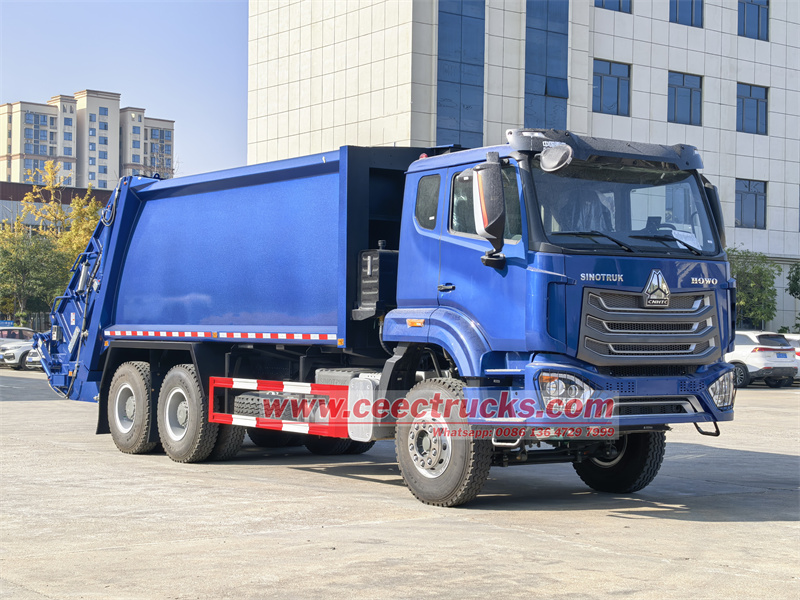

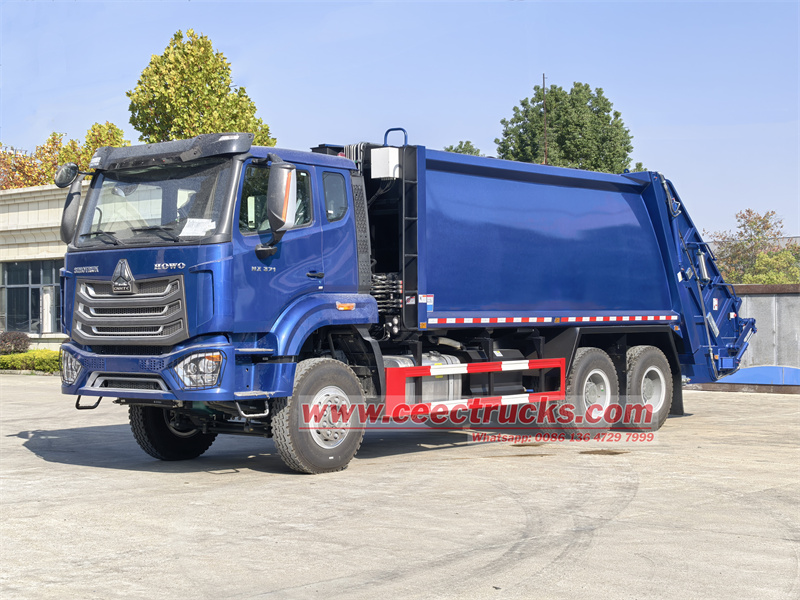

Truk pemadat sampah Howo 6x4 20 cbm dimodifikasi berdasarkan sasis Sinotruk Howo NX 6x4, dengan jarak sumbu roda 4600+1350mm. Truk ini dilengkapi dengan mesin Sinotruk WD615.47, HW19710, dan transmisi 10 kecepatan. Bagian atas bak berupa kontainer sampah terkompresi berbentuk busur dari baja karbon berkapasitas 20 meter kubik dengan perawatan anti korosi dan anti karat, penutup belakang yang sepenuhnya tertutup, dan mekanisme pengangkat bak gantung. Pemuatan dan pembongkaran sampah dikendalikan oleh sistem kontrol elektronik CAN-BUS, khususnya melalui tiga titik kontrol: kotak kontrol elektronik di kabin, tuas pengoperasian hidrolik manual di sisi pengemudi, dan kotak kontrol elektronik di pintu belakang.
Kapasitas kerja:
20cbmDimensi (mm):
10720 x 2500 x 3400 mmJarak sumbu roda (mm):
4600+1350mmTenaga mesin:
371HP/273kWTipe mesin:
SINOTRUK WD615.47Penggerak poros:
6x4Kotak roda gigi:
Sinotruk HW19710 10-speed,manualPerkataan:
Payload capacity can be customizedTruk Pemadatan Sampah Howo 20cbm

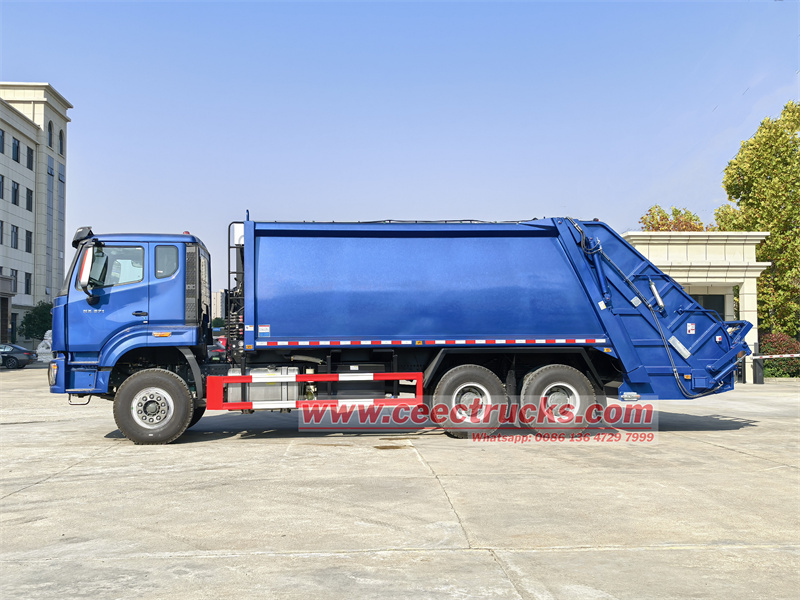

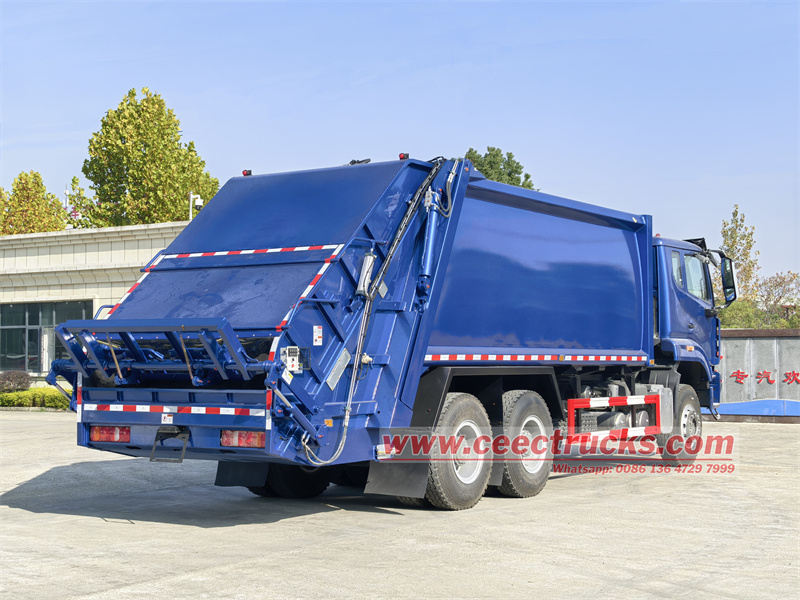

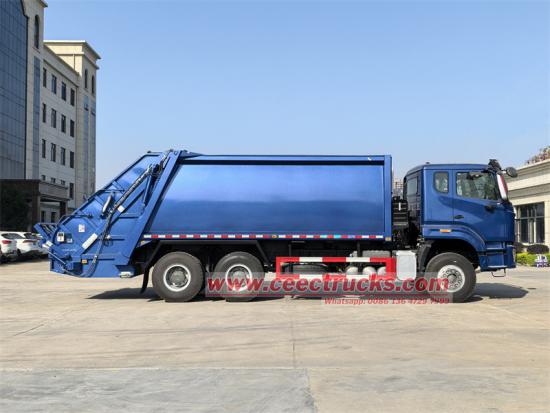

The 20cbm Howo rear lifting garbage truck is designed for efficient sanitation operations, featuring a heavy-duty chassis and intelligent compression technology. Its 20 cubic meter arc-shaped carbon steel body boasts excellent sealing, combined with a two-way compression system, can carry more garbage. At its core is the intelligent CAN-BUS electronic control system, which allows for precise operation of the entire process—including bin tipping, scraper compression, and push-loader unloading—through three control points: the cab, the side of the vehicle, and the tailgate. Integrating automatic loading, efficient compression, and sealed transfer, it significantly improves garbage collection efficiency and sanitation standards.
Key Feature:
----HOWO NX chassis, perfect performance
---- Sinotruk engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compact body capacity from 3 to 35 Cubic Meter.
---- Easy operation and easy maintenance.
---- Various types of refuse container lifter are available.
Product Parameters:
|
HOWO 6x4 20cbm rear loader compactor truck |
|
|
Chassis |
|
|

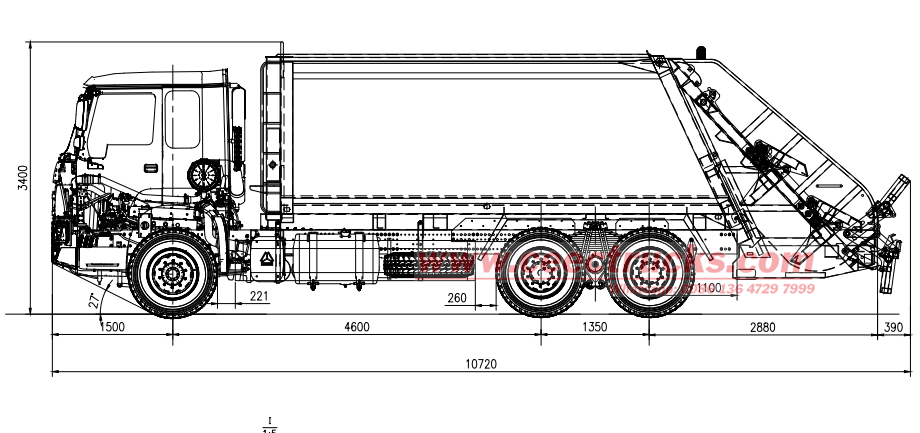

Dimensions |
10,720 *2,500*3,400 mm |
|
GVW/Curb Weight |
25,000/10,100kg |
|
Wheelbase |
4,600+1,350mm |
|
Front/Rear Axle |
7T/18T(2 axle) |
|
Tire |
12.00R20, 10+1 tires |
|
Engine |
|
|
Type |
Diesel, In-line 6-cylinder, water-cooled, four-stroke, with exhaust valve brake, direct injection, supercharged intercooling |
|
Make/Model |
SINOTRUK / WD615.47 |
|
Horse Power （ HP) |
371 HP/273kW |
|
Max torque |
1500N.m |
|
Rated speed |
2200rpm |
|
Max torque speed |
1100-1600rpm |
|
Fuel tank (L) |
400L |
|
Displacement |
9.726L |
|
Emission standard |
Euro 2 |
|
Transmission |
|
|
Model |
SINOTRUK/HW19710 |
|
Gears |
10F+2R |
|
Operation |
Manual |
|
Cabin |
|
|
Driving |
SINOTRUK HOWO NX 6X4, Left Hand Drive |
|
Type |
Steel construction, Single Row, Flat |
|
Passenger No. |
3 |
|
Garbage Container |
|
|
Capacity |
20 CBM |
|
Material |
Weather-resistant steel |
|
Design |
Sealed leakage proof |
|
Compaction Ratio |
3:1- 6:1 |
|
Hopper Volume |
2m3 |
|

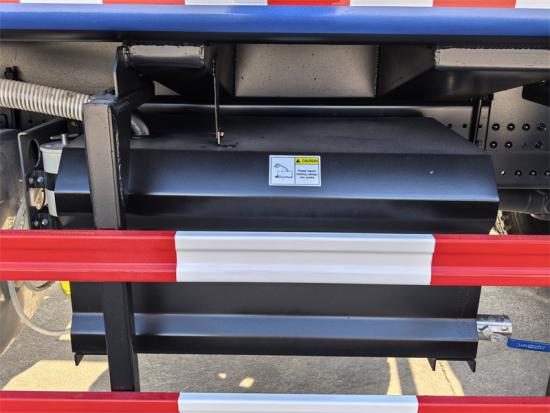

Sewage Tank |
200L + 200L |
|
Flip mechanism |
Without, direct trash dumping |
|
Loading Time |
8~10s |
|
Loading Cycle Time |
≤40s |
|
Unloading Time |
≤45s |
|
Discharge Type |
Rear loading and discharging |
|
Discharging system |
Horizontal ejection |
|
Control System |
Siemens Automatic CAN system : Front control in the cab, rear button control, and manual control |
Product Details:

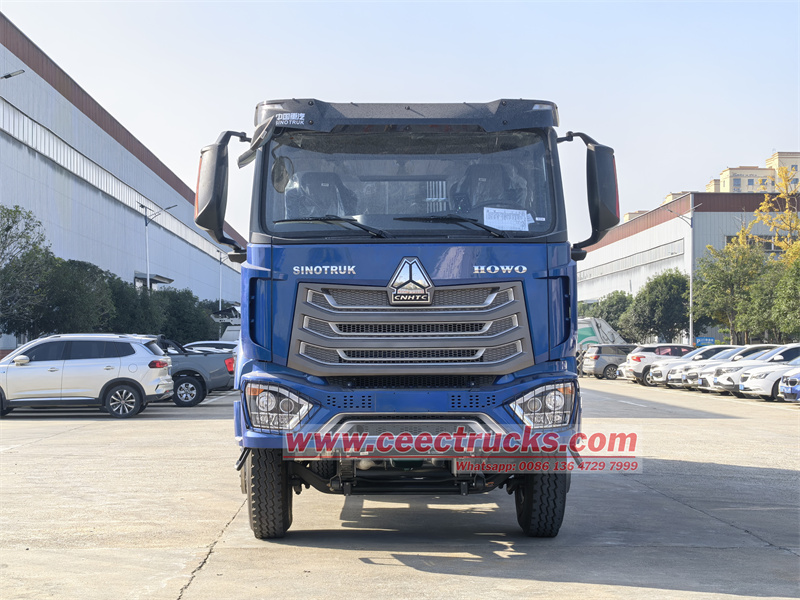

Chassis Configuration
• Based on the Sinotruk Howo NX 6x4 chassis, 7-ton front axle, 18-ton dual rear axle load capacity
• Wheelbase: 4600+1350mm
• Engine: Sinotruk WD615.47 engine, 371HP, 1500 Nm wheelbase, Euro 2 emission standard
• Transmission: HW19710 10-speed transmission, smooth shifting and high transmission efficiency
Container Structure
• Volume: 20 cubic meters
• Material: Curved carbon steel container
• Processing: Professional anti-corrosion and rust-proofing treatment to extend service life

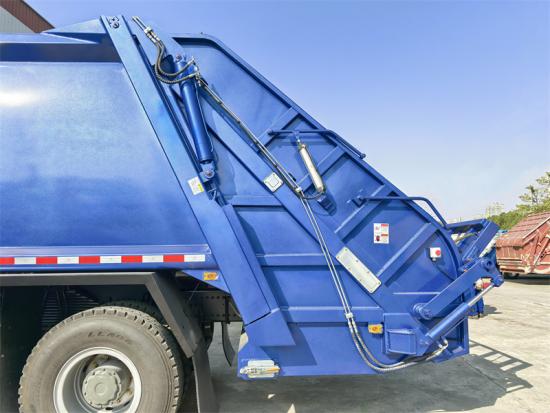

• Rear Design: Fully sealed lid to prevent garbage spillage and sewage leakage during transportation
Loading System
• Loading Method: Hook-mounted bin tipping mechanism, compatible with standard 120L/240L/660L garbage bins
• Compression Mechanism: Two-way compression technology, compression ratio can reach 1:3 or higher
Intelligent Control :
The entire vehicle adopts an advanced CAN-BUS bus control system, enabling intelligent and precise control of the garbage loading and unloading process.

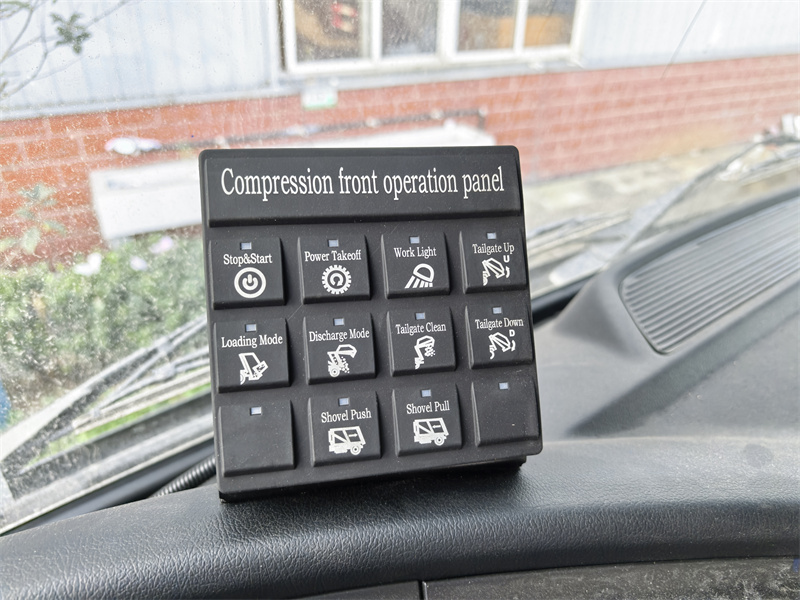

• Cab electrical control box function buttons: Work start/stop, loading mode, unloading mode, loader lifting/lowering, pusher extension/retraction, cleaning function.

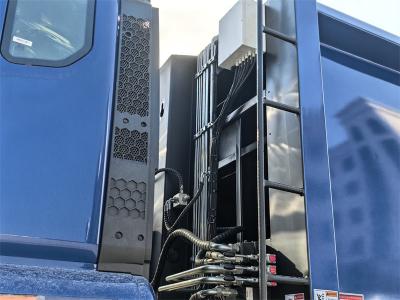

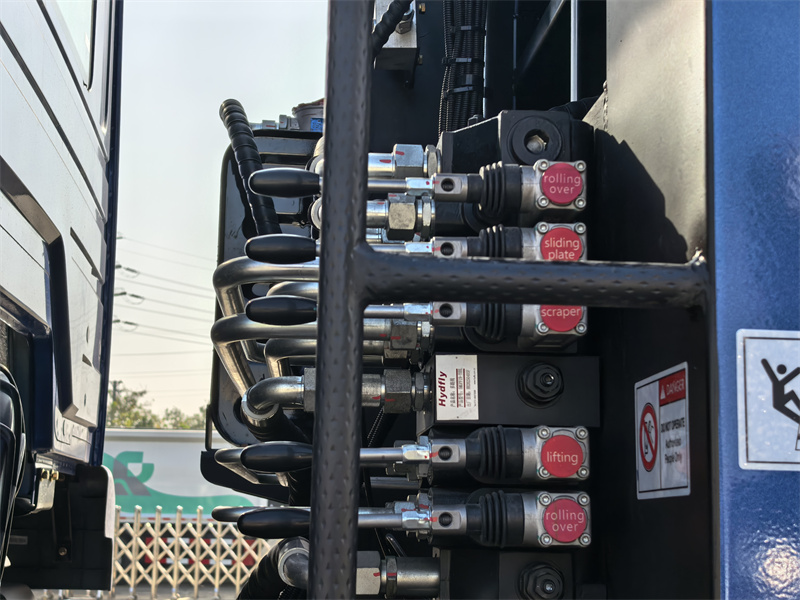

• Driver-side manual hydraulic control lever operation functions: Tilting mechanism lifting, scraper lowering/spinning, slide plate up/down, pusher extension/retraction.

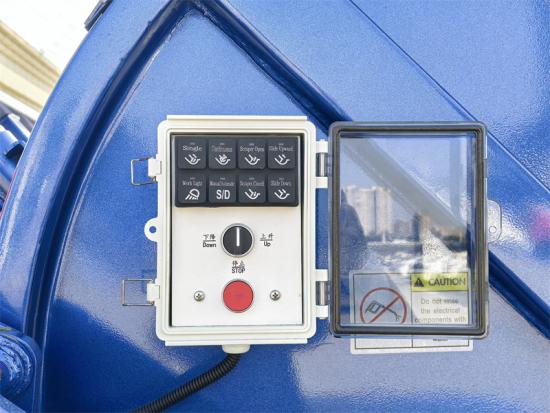

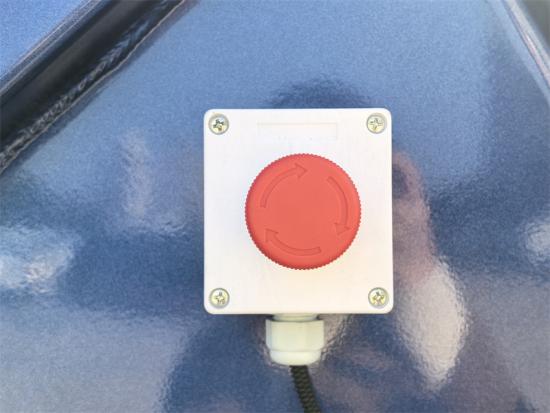

• Tailgate electrical control box: Single/continuous cycle, scraper lowering/spinning, slide plate up/down, automatic/manual mode, work lights, emergency brake, etc., tilting frame tilting knob.

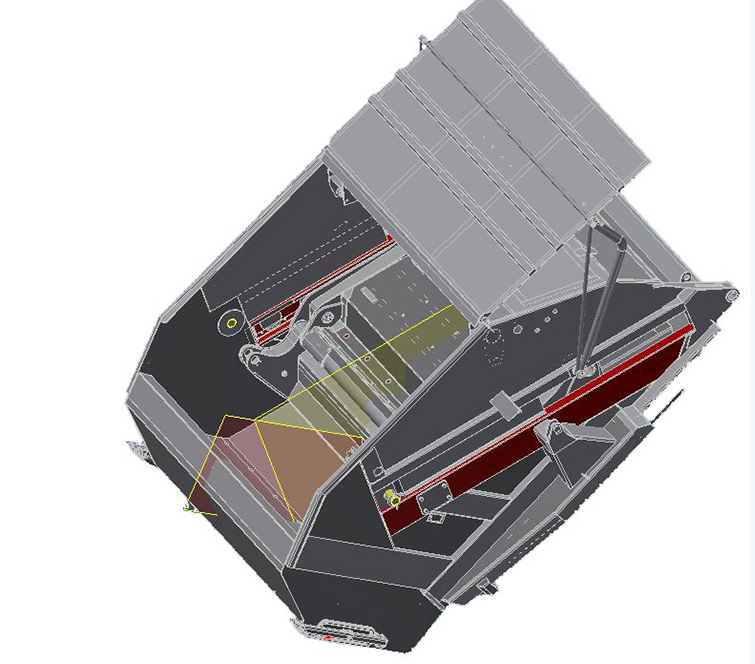

Working Principle:

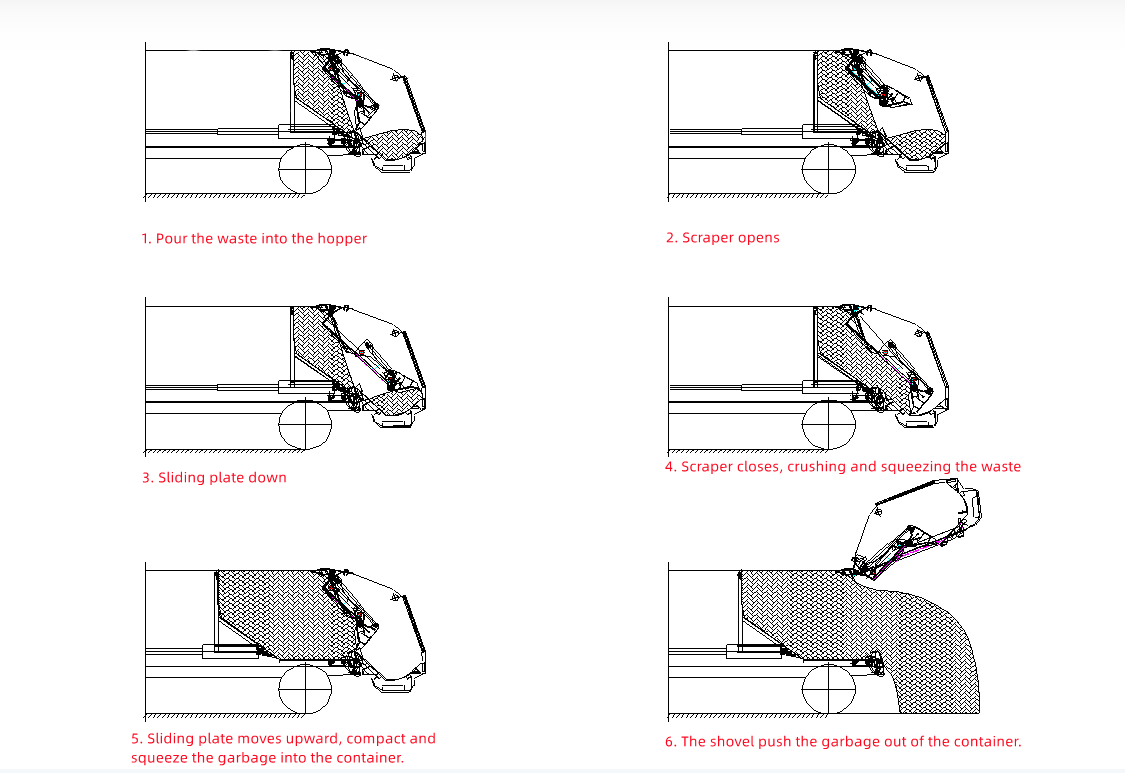

The Howo 6×4 20 cubic meter rear lifting garbage truck's loading and unloading is based on a combined hydraulic drive and intelligent electronic control system. During loading, the bucket tipping mechanism lifts the garbage bin above the container and dumps the garbage. Under the action of the hydraulic cylinder, the scraper unfolds and descends with the sliding plate, then rotates to scrape and compact the garbage. The sliding plate moves upward, scraping the garbage into the container. The pusher retracts under the compressive force, achieving continuous filling.
How does the garbage compactor truck work?
During unloading, the loader lifting cylinder raises the rear end, and the pusher cylinder horizontally pushes out the garbage, returning to its original position after unloading. The electronic control system supports dual-position operation from the cab and tailgate, with manual hydraulic operation located on the driver's side. Combined with hydraulic overload protection and a sealing design, it ensures safe and efficient operation.
★ Weichai WD615.47 Euro 2 engine, super powerful
★ SINOTRUK HW19710 Manual 10-shift mechanical transmission gearbox
★ 12 months fast moving spare parts for FREE
★ Authorized HOWO 20CBM garbage compactor truck
★ Training service for Howo 6x4 rear loader compactor truck
